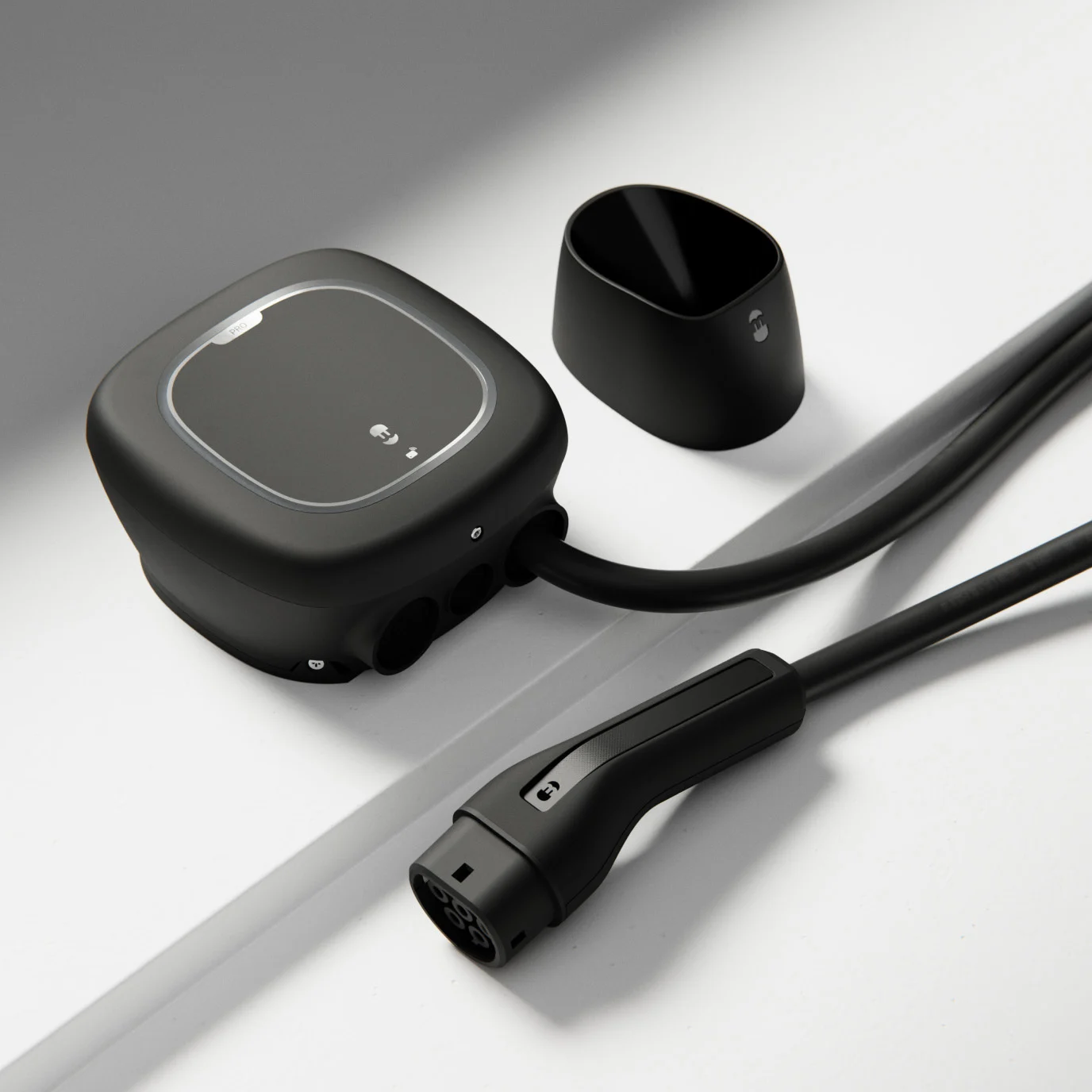

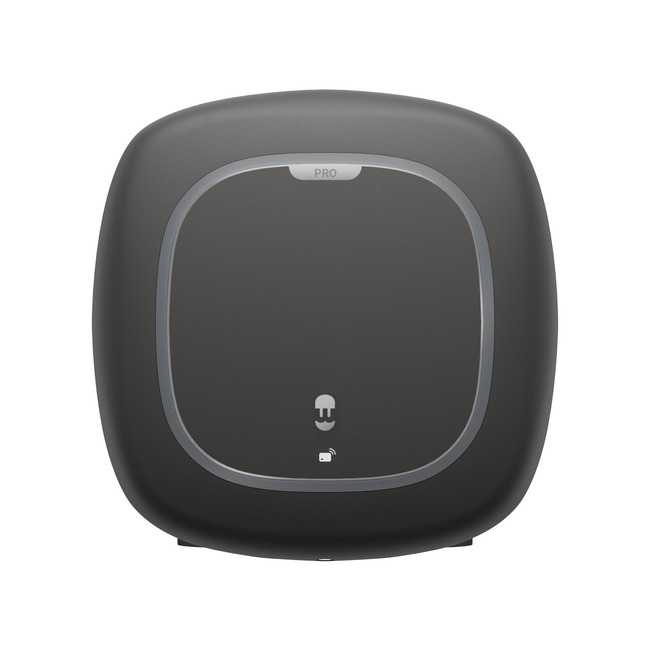

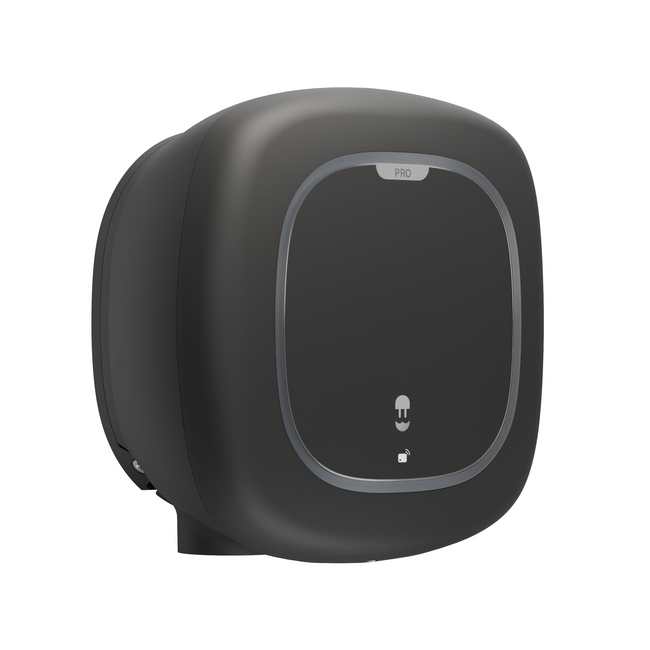

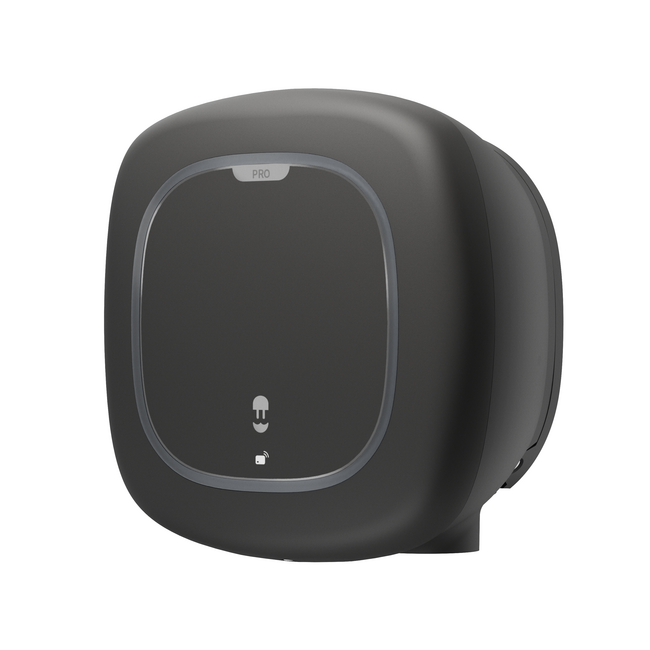

Wallbox Pulsar Pro 22 kW - type 2 - 5 meter - EV Charger
The Wallbox Pulsar Pro has a compact and elegant design. Dynamic load balancing and solar panel connection are optional. Connection is always available via 4G and business settlement is possible via RFID or MyWallbox Business.
Fast & Powerful Charging – Charge up to 8x faster than a standard Level 1 charger with 40 Amps of adjustable power for a quicker, more efficient home EV charging experience.
Smart App Control – Connect via WiFi or Bluetooth and use the myWallbox app to remotely schedule charging, track energy usage, and optimize for off-peak electricity rates—all from your smartphone.
Voice-Control Ready – Works with Alexa and Google Home for hands-free charging. Start, stop, and monitor your charger using simple voice commands for a seamless smart home experience.
Compact, Durable & Weather-Resistant – The ultra-compact design fits in any garage or driveway, while its IP-rated weatherproof construction makes it perfect for indoor and outdoor use.
Safe & Certified Performance – UL and Energy Star certified, ensuring high safety and efficiency standards. Includes a 25ft cable for flexible installation and easy vehicle access.
Flexible Power Options – Adjust the charging capacity from 16A to 40A to match your home’s electrical setup. Easily connect to lower-power circuits when needed or increase power for faster charging as your setup allows.
| Connector Type | Type 1 (J1772) |
| Maximum Current | 40 Amps | 9.6kW |
| Configurable Current | 6A to 40A |
| Power Input | NEMA 14-50 or Hardwired |
| Color | Matte Black |
| Cable Length | 25 Feet |
| Weight | 4.4lbs (without cable) |
| Connectivity | Bluetooth and Wi-Fi |
| Voice Control | Amazon Alexa and Google Assistant |
| Rated Voltage AC +/-10% | 240/208V (Level 2) |
| Operating Temperature | -22ºF to 104ºF |
| Enclosure Rating | NEMA Type 4 per UL 50E |
| Electrical Safety | UL 2594, UL 2231 |
| EMC Compliance | FCC Part 15 Class |
