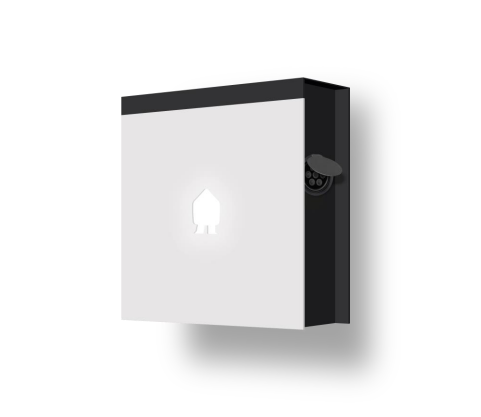

Smappee EV Wall Home 22 kW

The Smappee EV Wall Home is a charging station with a sleek design. Equipped with a charging capacity of up to 22 kW, via a type 2 socket. Easy to link with your dynamic energy contract. Real-time control anytime and anywhere via Wi-Fi or 4G, using the Smappee APP. Dynamic load balancing and RFID locking are available. Suitable for business settlement and all charge cards. A quality product from Belgium with a 2-year warranty.

• This wallbox is suitable for all hybrid and electric cars with a type 2 plug.
• Maximum charging capacity: 22 kW / 3 x 32A
• Suitable for business and private use.
• Including Smappee Infinity: The Smappe EV Wall Home package comes with several Smappee Infinity components to measure the main power supply and the single-phase solar inverter.
• Dynamic load balancing (via Smappee Infinity); this allows the wallbox to automatically take into account the power consumption of the household/business, preventing overloading.
• To pair with your dynamic energy contract; The Smappee EV Wall Home has the ability to take full advantage of your dynamic. Energy contract through the Smappee Infinity programme. This charging station can be programmed with Smappee Infinity to charge your car at the time when power is cheapest for you.
• Can be linked to your solar panels.
• Free Smappee APP; this app allows you to remotely control and monitor/read your Smappee EV Wall Home charging station. In addition, the app is linked to Smappee Infinity, which is connected to the main power supply. With this, Smappee also provides insight into your entire energy management, including solar insight. In summary, you can use the following features on the app:
  – Gain insight into your charging session and monitor speed
  – Track your charging history
  – Insight into full energy management
• Scan and charge: Other users can also use the EV Wall Home by scanning the QR code. You can scan the QR code in the Smappee app.
• This charging station features a socket connection for a type 2 plug.
• Includes DC 6mA ground fault protection, protection against over -& underload, overheating and short circuit.
• Plug & Charge or authorization via RFID security in order to prevent unauthorized use.
• LED status indication; via the RGB LED indicator on the top of the Smappee EV Wall Home, the charging status is displayed. The different statuses can be found in the user guide below.
• Central System communication protocol: OCPP 1.6 JSON, ready for update to OCPP 2.0.
• Wi-Fi and 4G connectivity.
• Dimensions: 300 × 300 × 110 mm (h x w x d).
• Weight: 4.7 KG
• Colour: RAL 9016 (Star white) + RAL 702 (black grey)
• This wallbox comes standard with a multilingual installation and user manual.
• Protection grade IP54 / IK8: Suitable for outdoor use.
• European A-quality; a solid and high-quality product from Belgium.
• 2-year warranty.

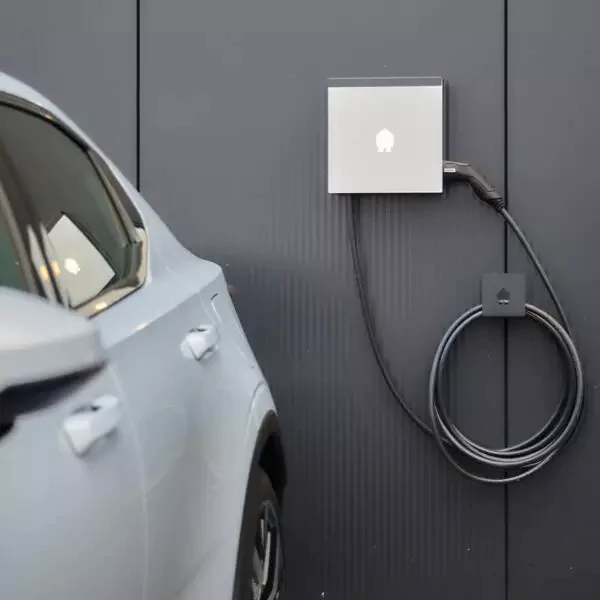

Smappee EV Wall Home charging station installation

When installing a Smappe EV Wall Home, you actually have 2 choices;
1) You can install the Smappee EV Wall Home charging station yourself.
2) Let a charging station-installer install it.

In general, we always recommend having the charge post installed by a recognised charge post installer. After all, you save on safety. This is because it is often underestimated how much is involved and mistakes can have major consequences. A certified installer has taken the necessary installation courses, often including those provided by the brand itself. Curious about the installation costs of this Smappee charging station? Contact us for a no-obligation charge post quote.

If you decide to install the charging station at home yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, you will need a power cable for this 22 kW charging station. In this case, that is a 5x6mm2 YMVK cable for inside / in conduit or a 4x6mm2 YMVK-as ground cable for outside. Dynamic load balancing can be activated via Smappee Infinity. More information about Smappee Infinity can be found here. Since it only connects via Wifi, you don’t need a data cable.
Have you also checked whether you still have enough space in your fuse box? The earth leakage circuit breaker takes up 4 modules, so an expansion box is often required.
