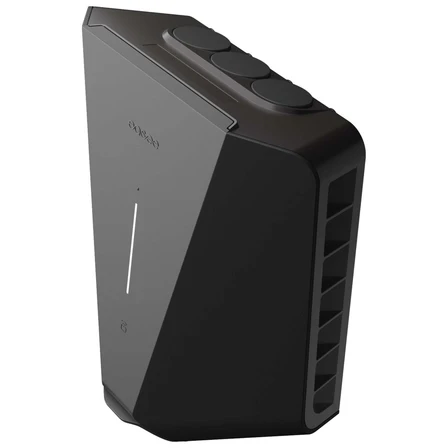

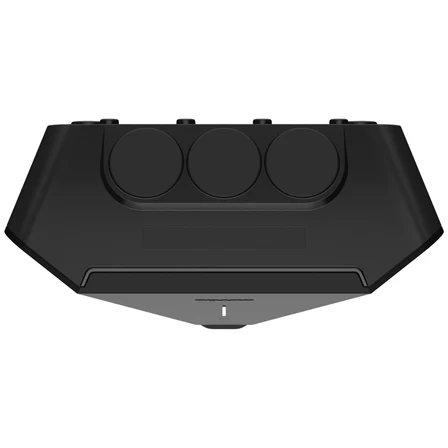

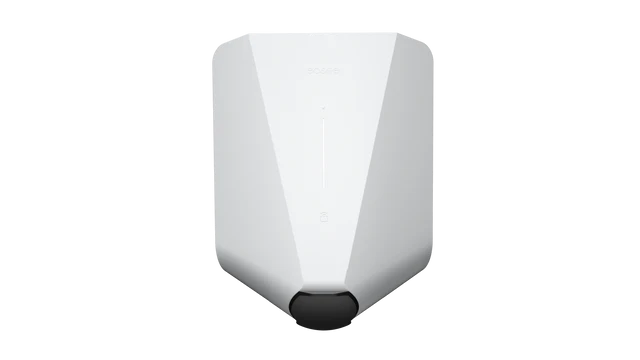

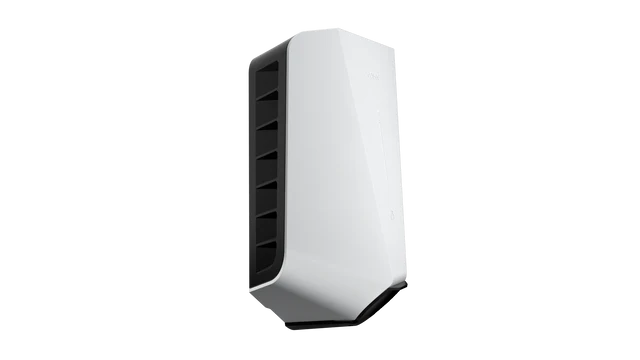

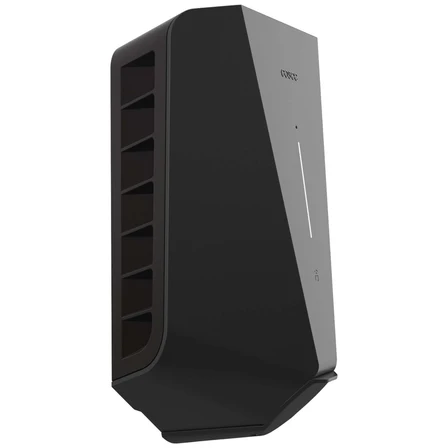

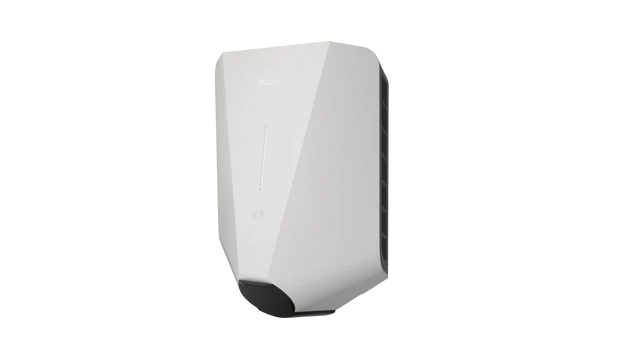

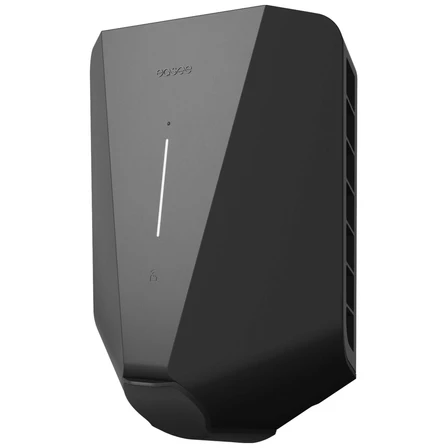

Easee Up

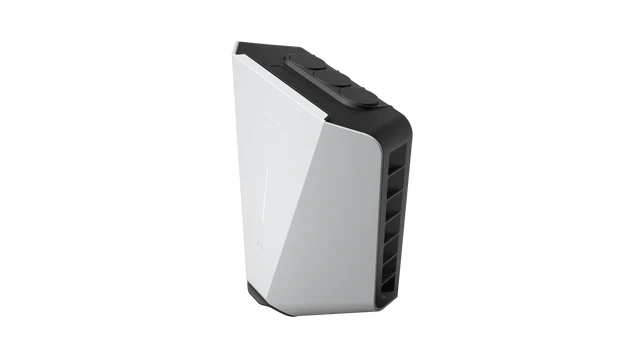

The Easee Charge Up is a compact EV Charger with a great design. Dynamic load balancing can be achieved by connection with the Easee Equalizer. Can be used for business settlement and all accepts all charge cards. Operated via Wi-Fi or 4G, using the app.
Discover Easee’s reliable and future-proof electric car charger for your home charging needs. Charge Up supports all electric cars, phases and power grids and delivers the highest possible power. The advanced and smart safety features contribute to safe charging.
Charge Up can charge up to 7.4 kW on a single-phase circuit and up to 22 kW on a three-phase circuit. Install up to three chargers per charging station in your home. The charger is continuously updated with the latest functionality.
- Easee LinkTM local load and phase balancing.
- Automatic queuing system.
- Permanent locking of the Type 2 cable.
- Integrated RFID reader (NFC/ISO 14443 and MIFARE Classic®).
- Universal, fits all types of electric cars and power supplies.
- Full control with Easee App or third-party integrations.
- Manufacturer’s warranty: 5 years according to Easee’s warranty terms.
General
- Dimensions (mm): H: 256 x W: 193 x D: 106.
- Wall mounting (mm): c/c
- H: 160 x W: 125.
- Operating temperature: -30 °C to +40 °C.
- Weight: 1.5 kg.
Connectivity
- Wi-Fi 2.4 GHz b/g/n. Bluetooth BLE 4.2. Built-in LTE Cat M1. OCPP 1.6J
- Easee Link (between chargers / between charger and Equalizer).
- Built-in RFID/NFC reader for access control.
- Easee App for control and monitoring.
Charging power
- 1-phase: 1.4 kW (6 A) – 7.4 kW (32 A).
- TN 3-phase: 4.1 kW (6 A) – 22 kW (32 A).
- IT 3-phase: 2.4 kW (6 A) – 12.7 kW (32 A).
Electrical
- Voltage: 3x 230 V / 400 V AC (±10%).
- Mains frequency: 50 Hz.
- Mains: TN, IT, TT.
- Connection point: Type-2 contact (Mode 3).
- Automatic adjustment of charging speed based on available power.
- Automatic charging with solar energy.
- Automatic phase balancing.
Connection point fault protection
- Integrated residual current device type A 30 mA AC according to EN 60947-2 and 6 mA device for detecting DC residual currents (RDC-DD) according to IEC 62955, 9.9. Temperature monitoring.
- Overload protection.
- Degree of protection: IP54 (back plate is IP22 without cover).
- Impact resistance: IK10.
- Overvoltage category III.
- Anti-theft.
Complies with the following regulations
- 2014/53/EU (RED).
- 2011/65/EU (RoHS).
- 2014/30/EU (EMC).
- 2014/35/EU (LVD).
Easee App
- Check charging.
- View charger status.
- Lock/unlock charging cable.
- Approve charging with app.
- Charging session summary.
- Lifetime consumption counter.
- Overview of available energy.
- Configuration
| Item Number | 6601012 |
| Supplier’s Item Number | 10141 |
| Charging Connector | Type 2 socket, female (IEC 62196-1/2) |
| Charging Mode | Mode 3 |
| Number of Phases | 1 / 3 |
| Power Supply | 6-32A |
| Max Charging Power | 22 kW |
| Electrical Network | IT (230V) and TN (400V) (automatic detection) |
| Charging Current | Stepless (1A) adjustment between 6A-32A (1.4 – 22 kW) |
| Operating Voltage | 230V – 400 VAC |
| Frequency | 50 Hz |
| Power Consumption | <1 W standby |
| Fuse Rating | Max 40A |
| Ground Fault Protection | Built-in electronic ground fault protection A (30mA) + 6mA DC-RCM / RDC-PD (IEC 62955: 4.1.1.4) |
| Operating Temperature | -30°C to +50°C |
| Authorization | RFID/NFC, 13.56 MHz / Application |
| WiFi | 802.11 b/g/n (2.4 GHz) |
| Bluetooth | 4.3 |
| Telecommunication | eSIM – 4G/LTE Cat M1 |
| Communication Protocols | Bluetooth Low Energy (BLE 4.3), WiFi, RFID/NFC, and OCPP 1.6J |
| Third-Party Integration Options | OCPP 1.6J over 4G/WiFi and API |
| Features | Load balancing for up to three charging boxes Support for wireless load balancing of main fuse Energy metering Soft start Pressure sensor – manual adjustment of charging power and smart charging Light sensor – automatic adjustment of LED brightness |
| Energy Control | Smart home ready |
| Energy Meter | Integrated energy meter with ±3% accuracy for current and voltage |

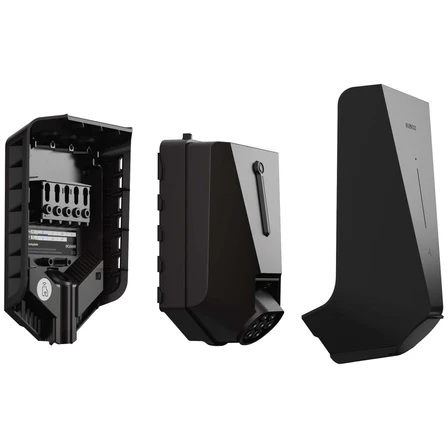

| Theft Protection | Electronics (charging unit / charge berry) can be disabled and tracked in case of theft Electronics can be locked to the backplate with an invisible padlock Charging cable can be locked to Type 2 socket |
| Software Updates | Automatic downloads (included) |
| Protection Class | IP54 |
| Fire Protection | UL94 |
| Impact Resistance | IK10 |
| UV Protection | UV resistant |
| Insulation Class | II (4kV AC and 6kV impulse, insulation) |
| Surge Protection Class | >III (4kV) |
| Dimensions | 194 x 256 x 106 mm |
| Weight | 1.5 kg |
| Standards & Certifications | IEC 61851-1 and IEC 61851-22 Radio Equipment Directive 2014/53/EU RoHS Directive 2011/65/EU CE |
| Warranty | 5 years |
