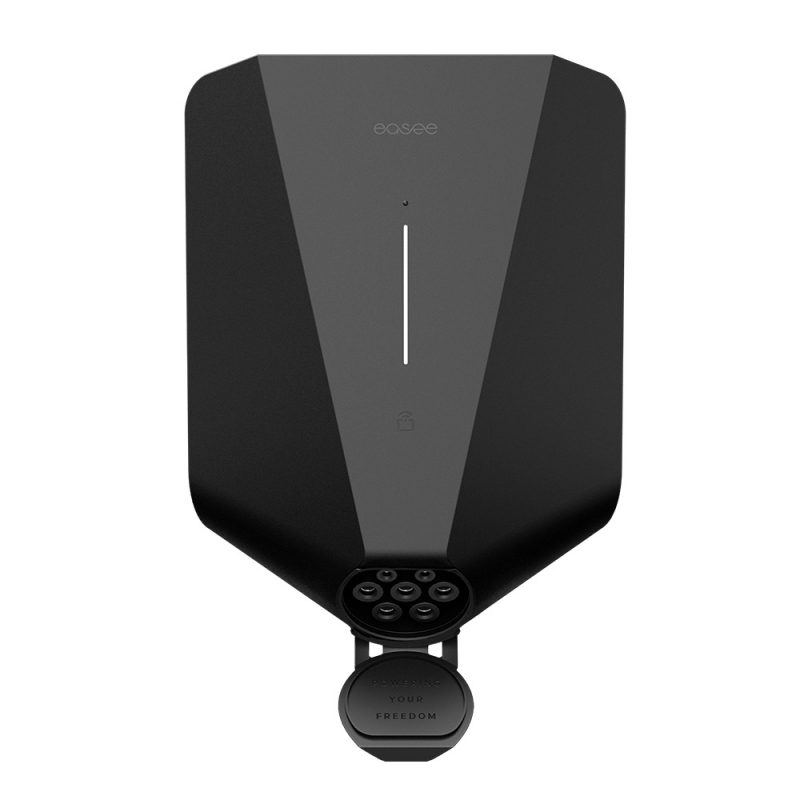

EASEE Charge Core 22kW charging station, mini, connected and smart – for home or outdoor company car park

The wallbox EASEE Charge Core single-phase or three-phase charging station – 2.3kW to 22kW – Wi-Fi – RFID, is powered by single-phase or three-phase. Its charging intensity is adjustable instantly and at any time between 6A and 32A, via the application. It can therefore adapt to the available power of your home. Its T2 front socket is lockable to ensure safe charging of your electric car in mode 3.

Thanks to the EASEE application, you can connect your terminal to your Smartphone by Wi-Fi or 4G thanks to the e-Sim included.

Main Features

• Power supply in single-phase or three-phase
• Adjustable mode: Plug & Charge or by RFID badge – your choice – adjustable on the EASEE web portal
• Adjust thecharge power between2.3kW and 22kW, adjustable via app
• Local Wifi connection and 4G included: access to the EASEE App and the EASEE web portal easee.cloud
• Dynamic load module without wires thanks to the Equalizer
module
• Terminal block for cable 10mm² to 16 mm²
• 6mA direct current leak detector integrated in the terminal
• Protection IP54 and IK10: resistant to heavy rain and shocks
• Plug: Type 2. Compatible with all electric vehicles
• Management of solar panels
• Wall mounting kit included
• Enable / Disable remote charging
• Cable lock type 2 in terminal
• Schedule the charge at the desired time slots (to charge only at off-peak hours for example)
• Consult the consumption history and the total cost of electricity consumed
• Scalable infrastructure allows up to 101 chargers on a single circuit.
• Automatic balance of the phases
• Energy meter integrated.
• Developed and produced in Norway.

Plug & Charge or RFID card activation

The terminal works in Plug & Charge,or byRFID card of your choice.

In Plug & Charge, as soon as you connect the cable to your vehicle and to the charging station, charging starts. If you activate the RFID mode on the EASEE web portal, then only the RFID cards encoded in your station will be able to start charging.

Cooldown Time

From 15km (at 3.7kW) to 100km (at 22kW) more autonomy per hour of charging.

4G connection included and free for life

All Easee terminals are equipped with an eSim card, for Internet access at any time, even if Wifi is not available. This connection also allows easy remote troubleshooting in the event of a problem.

No subscription to pay, the 4G connection is free for life.

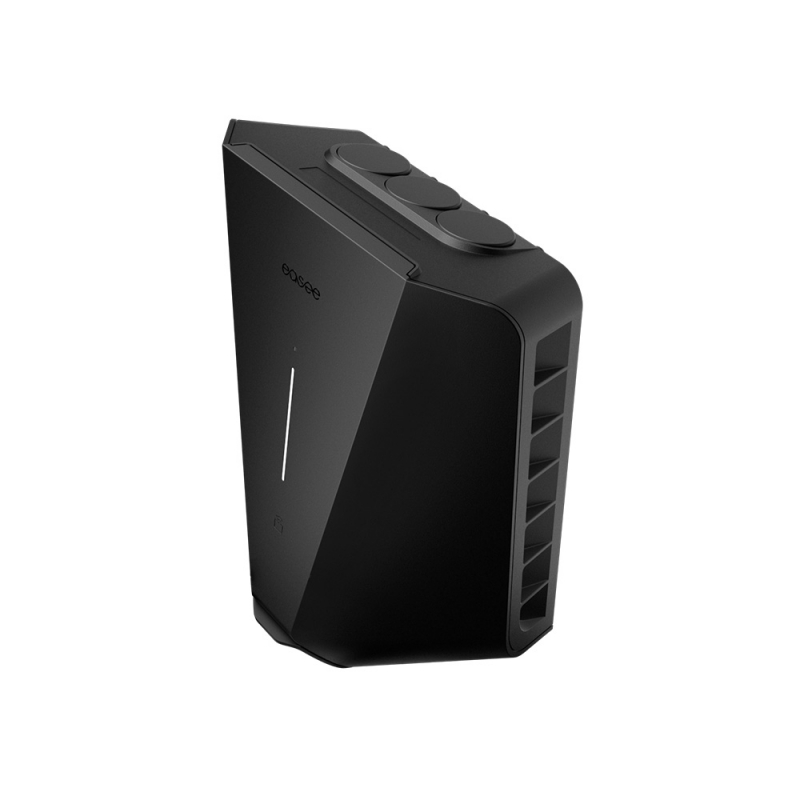

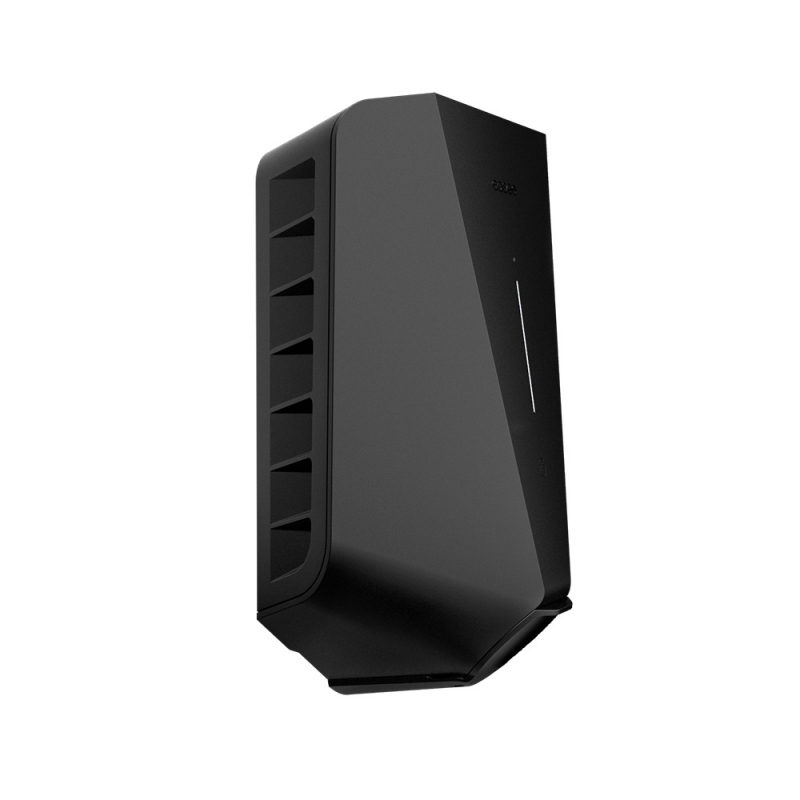

Design, compact and durable

The Wallbox Easee Charge Core is one of the smallest charging stations on the market. Discreet, light and practical. Size W193 x H256 x D106mm. She weighs 1.5 kg. It is also robust (IK10) and resistant to heavy rain (IP54). It can be installed outdoors without rain protection. Its Norwegian design ensures great resistance against bad weather.

Equalizer dynamic load module

The Equalizer from EASEE makes it possible to measure all electrical consumption and dynamically control the charging power of the charging station. There are two versions for each type of network: single-phase or three-phase.

The main functions of the Equalizer:

• Charge as quickly as possible avoiding tripping of the main circuit breaker

• Automatically adapts the charging power

Thanks to the Equalizer:

• Recharge up to 6 times faster
• Activate energy sharing to charge several vehicles simultaneously
• Savemoney by avoiding switching subscriptions

Solar charging:

Once the Equalizer is installed, you can activate the solar charging function from the Easee App. You will have the choice between two different charging modes to suit your specific needs and preferences.

• Solar: Charge your car using only your solar panels
• Grid + solar: charge your car with energy from both the grid and your solar panels

All this is handled automatically by the Equalizer module.

Easee App

The Easee application is available on Iphone IOs or Android, and allows you to manage the following functions:

• Change charging power
• Automate charging power with the Equalizer (dynamic charging)
• Manage the activation mode: Plug & Charge or by RFID badge

• Monitoring and managing different chargers
• Enable / Disable remote charging
• Enable vacation mode
• Add and manage RFID badge users
• Schedule the charge at the desired time slots (to charge only at off-peak hours for example)
• View consumption history and total cost of electricity consumed, per user
• Manage solar panels (100% solar or mixed energy)
• Lock the type 2 cable in the terminal

PHOENIX CONTACT 5m charging cable:

The Charging cable for Phoenix Contact electric vehicle – type 2 to type 2 – 7.4kW or 22kW – 5m is ideal for charging your electric car from type 2.

Cable power:

7.4kW version:

22kW version:

We advise you to choose the cable adapted to the configuration of your charging station. For a single-phase installation you can choose a 7.4kW cable and for a three-phase installation you can choose a 22kW cable. Please also check the on-board charger of your vehicle to know the maximum power accepted by it.

Carplug test

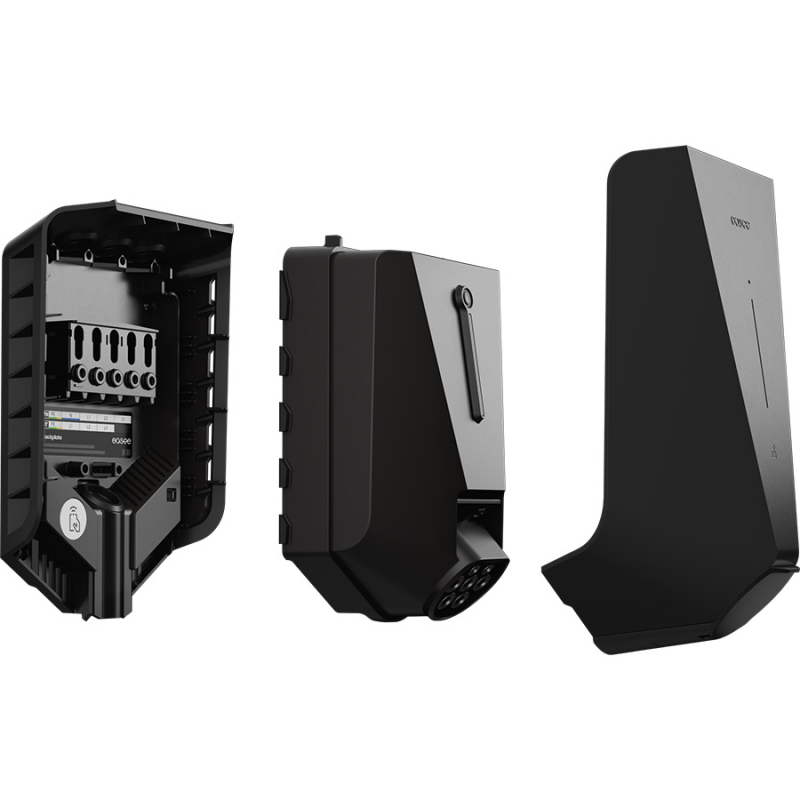

The Carplug team has successfully tested the EASEE Charge Core charging station. Connecting the power supply is simple thanks to the easy-access 10mm² terminal block. The electrical protections selected by CARPLUG are compatible and ensure safe start-up.

The station lights up quickly, and is ready to charge in less than about a minute. We downloaded the EASEE app and created our account, associated the charging station, the connection was made without problem thanks to the Local WiFi connection. 4G automatically replaces Wifi in the event of a cut. We then connected the cable: the charge started on its own at the intensity set on the application. If you change the intensity on the app, the charging intensity changes instantly on the car.

Review: Very positive. Ideal terminal for a garage or a house indoors or outdoors, for a person wishing to monitor their consumption, generalrer its charging slots, and sometimes modify the charging intensity.
